In addition to acoustic signals, the system also visually alert drivers of obstacles with LED (Light-Emitting Diode) lights in different colors, or/and LED numeric readout showing the exact distance.



01B Series   02B Series   03B Series


04 Series   05B Series   06B Series


07 Series   08 Series   09B Series

05B Series
System Composition
Model
Composition
QZ-2005B
2 sensors/control box/buzzer/LED display
QZ-3005B
3 sensors/control box/buzzer/LED display

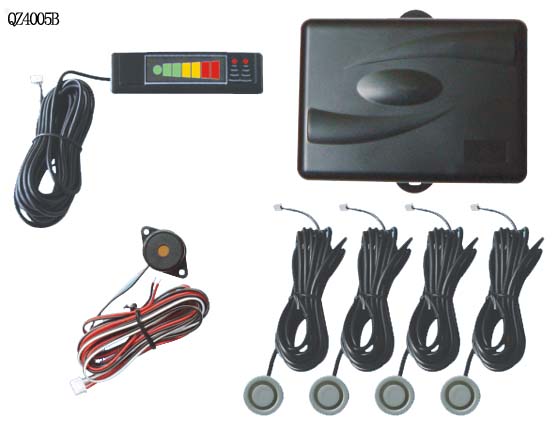

QZ-4005B
4 sensors/control box/buzzer/LED display

Sensors Applicable: All types
Control Boxes Applicable: CB-01, CB-02, CB-03

Audible Distance Indication
1.50 to 0.80m
Bi, Bi, Bi
0.80 to 0.40m
Bi  Bi BiBi (the closer, the faster)
0.40 to 0m
Bi... (solid beeping)

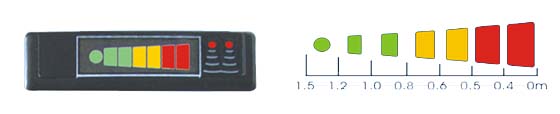

Visual Distance Indication
7 LED lights in 3 colors

General Specifications
Working Voltage
10 to 15V
Working Temperature
-30℃ to 70℃
Current Consumption
<100mA
Acoustic Volume
>85dB at 10cm
Response Time
300ms
Ultrasonic Frequency
40KHz
