products Name

 08
In addition to acoustic signals, the system also visually alert drivers of obstacles with LED (Light-Emitting Diode) lights in different colors, or/and LED numeric readout showing the exact distance.


01B Series   02B Series   03B Series


04 Series   05B Series   06B Series


07 Series   08 Series   09B Series

08 Series
System Composition
Model
Composition
QZ-2008
2 sensors/control box/numeric LED display with built-in buzzer
QZ-3008
3 sensors/control box/numeric LED display with built-in buzzer
QZ-4008
4 sensors/control box/numeric LED display with built-in buzzer

Sensors Applicable: All types
Control Boxes Applicable: CB-01, CB-02, CB-03



Audible Distance Indication
1.50 to 0.80m
Bi, Bi, Bi
0.80 to 0.40m
Bi  Bi BiBi (the closer, the faster)
0.40 to 0m
Bi...(solid beeping)
Mute setting available

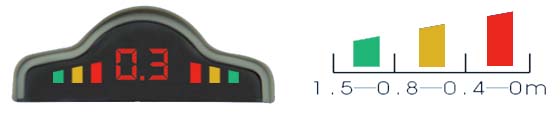

Visual Distance Indication
Distance
Visual Alert
2.5 to 0.35m
2 digits distance numeric display
0.35 to 0m
Display 00
LED lights positioned on two sides indicating orientation of obstacles



General Specifications
Working Voltage
10 to 15V
Working Temperature
-30ℿto 70ℿ/td>
Current Consumption
<100mA
Acoustic Volume
>75dB at 10cm
Response Time
300ms
Ultrasonic Frequency
40KHz
