In addition to acoustic signals, the system also visually alert drivers of obstacles with LED (Light-Emitting Diode) lights in different colors, or/and LED numeric readout showing the exact distance.
|
|
|
|
|
|
| 01B Series |
|
02B Series |
|
03B Series |
|
|
|
|
|
|
| 04 Series |
|
05B Series |
|
06B Series |
|
|
|
|
|
|
| 07 Series |
|
08 Series |
|
09B Series |

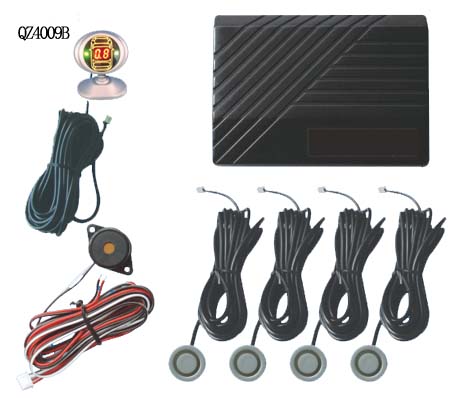

09B SeriesSystem Composition
|
Model |
Composition |
|
QZ-2009B |
2 sensors/control box/buzzer/numeric LED display |
|
QZ-3009B |
3 sensors/control box/buzzer/numeric LED display |
|
QZ-4009B |
4 sensors/control box/buzzer/numeric LED display |
Sensors Applicable: All types
Control Boxes Applicable: CB-01, CB-02, CB-03
|
|
|
Audible Distance Indication
|
1.50 to 0.80m |
Bi, Bi, Bi |
|
0.80 to 0.40m |
Bi Bi BiBi (the closer, the faster) |
|
0.40 to 0m |
Bi... (solid beeping) | |
Visual Distance Indication
|
Distance |
Visual Alert |
|
2.5 to 0.35m |
2 digits distance numeric display |
|
0.35 to 0m |
Display 00 |
|
LED lights positioned on two sides indicating orientation of obstacles | |
General Specifications
|
Working Voltage |
10 to 15V |
|
Working Temperature |
-30℃ to 70℃ |
|
Current Consumption |
<100mA |
|
Acoustic Volume |
>85dB at 10cm |
|
Response Time |
300ms |
|
Ultrasonic Frequency |
40KHz | | |
|
| |
|
