FR04 |
Sensors are installed in both front and rear bumpers providing protection whenever you drive forward or in reverse. The system is connected to both reversing light and ACC for power supply. When engine is activated, front sensors start to work. Buzzer turns mute automatically if obstacles keep stationary or move farther. When reverse gear is engaged, the front sensors will stop working and the rear sensors will be activated.
|
|
|
|
|
FR00B Series |
|
FR05B Series |
|
FR04 Series |
|
|
|
|
|
FR51B Series |
|
FR51S Series |
|
FR53 Series |
|
|
|
|
|
FR61 Series |
|
|
|
| FR04 SeriesSystem Composition
Model |
Composition |
QZ-4204 |
4 rear sensors/2 front sensors/control box/numeric LED display with built-in buzzer |

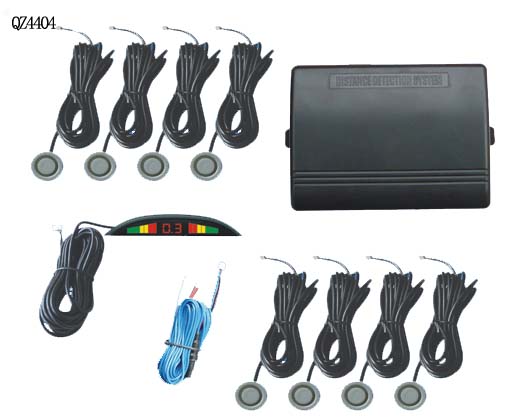

QZ-4404 |
4 rear sensors/4 front sensors/control box/numeric LED display with built-in buzzer |
Sensors Applicable: All types Control Boxes Applicable: CB-07, CB-08, CB-09
|
|
Audible Distance Indication
Rear |
Front |
1.50 to 0.80m
|
Bi, Bi, Bi
|
1.50 to 0.80m
|
Bi, Bi, Bi |
0.80 to 0.40m |
Bi Bi BiBi (the closer, the faster) |
0.80 to 0.40m |
BiBi, BiBi, BiBi |
0.40 to 0m |
Bi… (solid beeping) |
0.40 to 0m |
BiBiBi, BiBiBi, BiBiBi | |

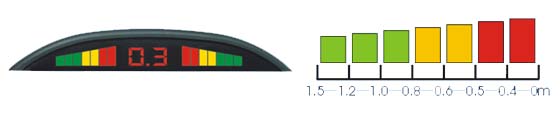

Visual Distance Indication
Rear |
Front |
2.5 to 0.35m |
2 digits distance numeric display |
2.50 to 0.35m |
2 digits distance numeric display |
0.35 to 0m |
Display 00 |
0.35 to 0m |
Display 00 |
LED lights positioned on two sides indicating orientation of obstacles | |
General Specifications
Working Voltage |
10 to 15V |
Working Temperature |
-30℃ to 70℃ |
Current Consumption |
<100mA |
Acoustic Volume |
>75dB at 10cm |
Response Time |
300ms |
Ultrasonic Frequency |
40KHz | | |
|
|
|
