products Name

 FR05B
Sensors are installed in both front and rear bumpers providing protection whenever you drive forward or in reverse. The system is connected to both reversing light and ACC for power supply. When engine is activated, front sensors start to work. Buzzer turns mute automatically if obstacles keep stationary or move farther. When reverse gear is engaged, the front sensors will stop working and the rear sensors will be activated.



FR00B Series   FR05B Series   FR04 Series


FR51B Series   FR51S Series   FR53 Series

FR61 Series

FR05B Series
System Composition
Model
Composition
QZ-4205B
4 rear sensors/2 front sensors/control box/buzzer/LED display

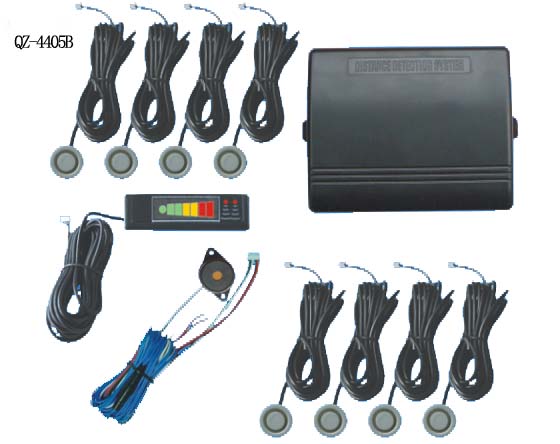

QZ-4405B
4 rear sensors/4 front sensors/control box/buzzer/LED display

Sensors Applicable: All types
Control Boxes Applicable: CB-07, CB-08, CB-09




Audible Distance Indication
Rear Front
1.50 to 0.80m
Bi, Bi, Bi
1.50 to 0.80m
Bi, Bi, Bi
0.80 to 0.40m Bi Bi BiBi (the closer, the faster) 0.80 to 0.40m BiBi, BiBi, BiBi
0.40 to 0m Bi… (solid beeping) 0.40 to 0m BiBiBi, BiBiBi, BiBiBi

Visual Distance Indication
Rear
Front
7 lights in 3 colors
7 lights in 3 colors


General Specifications

Working Voltage
10 to 15V
Working Temperature
-30℃ to 70℃
Current Consumption
<100mA
Acoustic Volume
>85dB at 10cm
Response Time
300ms
Ultrasonic Frequency
40KHz
