products Name |
52 |
The appearance of LCD (Liquid Crystal Display) / VFD (Vacuum Fluorescent Display) is more colorful and vivid, giving a luxurious looking to your vehicle.
| |
|
|
|
|
| |
51B Series |
|
52B Series |
|
| |
|
|
|
|
| |
53 Series |
|
54 Series |
|
| |
|
|
|
|
| |
61 Series |
|
62 Series |
|

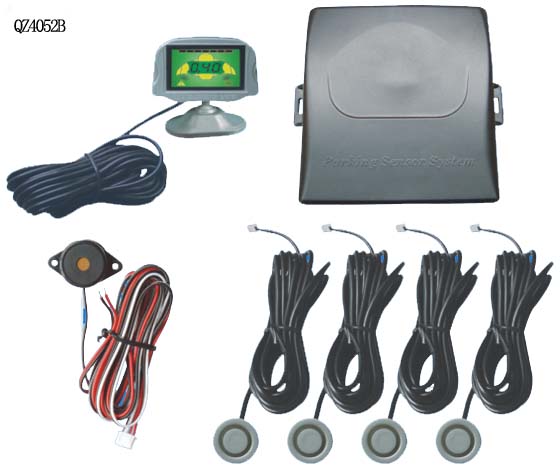

52B SeriesSystem Composition
|
Model |
Composition |
|
QZ-2052B |
2 sensors/control box/buzzer/numeric LCD display |
|
QZ-3052B |
3 sensors/control box/buzzer/numeric LCD display |
|
QZ-4052B |
4 sensors/control box/buzzer/numeric LCD display |
Sensors Applicable: All types
Control Boxes Applicable: CB-04, CB-05
|
|
|
Audible Distance Indication
|
1.50 to 0.80m |
Bi, Bi, Bi |
|
0.80 to 0.40m |
Bi Bi BiBi (the closer, the faster) |
|
0.40 to 0m |
Bi... (solid beeping) | |

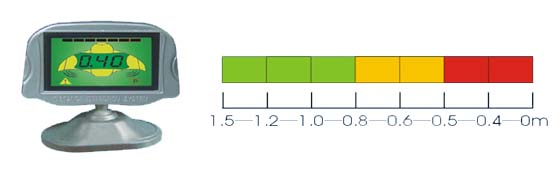

Visual Distance Indication
|
3.00 to 0.35m |
3 digits distance numeric display |
|
0.35 to 0m |
Display 000 |
|
Waving curves indicating orientation of obstacles | |
General Specifications
|
Working Voltage |
10 to 15V |
|
Working Temperature |
-30℃ to 70℃ |
|
Current Consumption |
<100mA |
|
Acoustic Volume |
>85dB at 10cm |
|
Response Time |
300ms |
|
Ultrasonic Frequency |
40KHz | | |
|
| |
|
