products Name

 PCH24125W SERIES

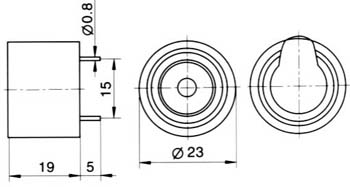

PCW23190 SERIES

Unit:mm  DIMENSIONS


SPECIFICATIONS

Type

PCW23190-03V-3300 PCW23190-06V-3300 PCW23190-09V-3300 PCW23190-12V-3300 PCW23190-48V-3300

Rated Voltage(VDC)

3 6 9 12 48

Operating Voltage(VDC)

2~5 4.5~9 6~12 1~18 38~58
◆Max Current at Rated Voltage(mA) 25 15 15 15 18
◆Frequency at Rated Voltage(Hz) 3300±500
◆Min Sound Pressure at Rated Voltage(dB) 80 83 85 88 88
Temperature Range(℃) -20~+60
Tone  Continuous

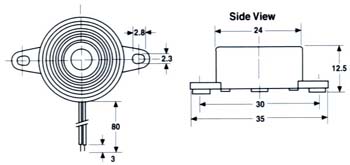

PCH24125W
SERIES

Unit:mm  DIMENSIONS




SPECIFICATIONS

Model No.

PCH224125W-09V-3300 PCH24125W-12V-3300 PCH24125W-12V-4500 PCH24125W-12V-5200

Operafing Voltage(VDC)

3~20 3~20 3~20 3~20

Rated Voltage(VDC)

9 12 12 12
◆Max Ourent at Rated Voltage(mA) 12 12 8 1
◆Frequency at Rated Voltage(Hz) 3300±500 3300±500 4500±500 5200±500
◆Min Sound Pressure at Rated Voltage(dB/30cm) 85 75 90 90
Temperature Ranges(℃) -20~+70
Tone  SINGLE
