ML30125 SERIES |
| ML30125 SERIES |

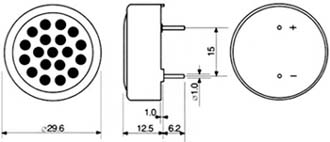

Unit:mm DIMENSIONS |
 |
|
SPECIFICATIONS |
|
Type |
ML30125-8R |
ML30125-32R |
ML30125-100R |
|
Rated Voltage(V) |
0.15 |
0.15 |
0.15 |
|
Operating Voltage(V) |
0.2 |
0.2 |
0.2 |
| Coil Resistance(Ω) |
8 |
32 |
100 |
| ◆Sound Output at 10cm(dB) |
Min.82/88 |
Min.82/88 |
Min.82/88 |
| Frequency Range |
700-5000 |
700-5000 |
700-5000 |
| Resonant Frequency(Hz) |
1200±15% |
1200±15% |
1200±15% |
| Operating Temperature(℃) |
-20～+60 |
| Storage Temperature(℃) |
-30～+70 |
| Weight(g) |
10 | | |
| Applied Voltage:rated voltage,1/2 duty,square wave. Distance for Measurement:10cm |
|
| PH34090 |
Unit:mm DIMENSIONS |
 |
|
|
| SPECIFICATIONS |
|
Type |
PH34090-50C-1100 |
|
Rated Voltage(Vp-p,Square Wave) |
10 |
|
Operating Voltage(Vp-p) |
1～30 |
| ◆Rated Current(mA) |
≤3 |
| Capacitance 120Hz(pF) |
50000±30% |
| ◆Sound Output at 1.1KHz,10cm(dB) |
≥85 |
| ◆Resonant Frequency(Hz) |
1100±500 |
| Operating Temperature(℃) |
-20～+60 |
| Storage Temperature(℃) |
-30～+80 |
| Weight(g) |
5 | |
| ◆Value appling at rated voltage. |
| | | |
|
| |
|
