products Name |
MD12054 |
| MES12060 SERIES |

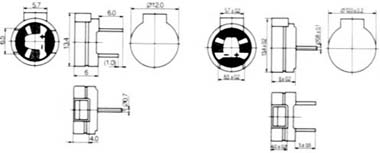

Unit:mm DIMENSIONS |
|
|
|
|
|
|
|
SPECIFICATIONS |
|
Type |
MES12060Po-5R-2700 |
MES12060Po-6.5R1-2731 |
|
Rated Voltage(V) |
1.5 |
|
Operating Voltage(V) |
1～2 |
| ◆Rated Current(mA) |
≤ 70 |
| Coil Resistance(Ω) |
5 ± 1 |
6.5 ± 1 |
| ◇Coil Impedance(Ω) |
15 |
22 |
| ◆Sound Output at 10cm(dB) |
≥85 |
| Resonant Frequency(Hz) |
2700 |
2731 |
| Operating Temperature(℃) |
-25～+70 |
| Storage Temperature(℃) |
-30～+85 |
| Weight(g) |
2 | | |
◆Value appling rated voltage (resonant frequency,1/2 duty,square wave)
◇Value appling (resonant frequency,sine wave,measuring current 60μA) |
|
| MD12054 |
Unit:mm DIMENSIONS |
 |
|
|
| SPECIFICATIONS |
|
Type |
MD12054Po-16R |
MD12054Po-42R |
|
Rated Voltage(V) |
1.5 |
|
Operating Voltage(V) |
1～2 |
| ◆Rated Current(mA) |
≤30 |
≤10 |
| Coil Resistance(Ω) |
16 ± 4 |
42 ± 6 |
| ◇Coil Impedance(Ω) |
40 |
120 |
| ◆Sound Output at 10cm(dB) |
≥75 |
≥70 |
| Resonant Frequency(Hz) |
2048 |
| Operating Temperature(℃) |
-25～+70 |
| Storage Temperature(℃) |
-30～+85 |
| Weight(g) |
2 | |
| Applied Voltage:rated voltage,1/2 duty,square wave. Distance for Measurement:10cm | | |
|
| |
|
