products Name |

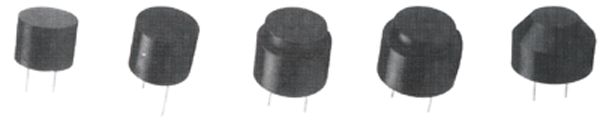

Piezo-ceramic ultrasonig sensor |
|
|
| TCF40-10TR1 |
TCF40-12TR1 |
TCF40-14TR1 |
TCF4-60TR1 |
TCF40-18TR1 |
- Appications
(1)Rmote Controller For Home Electric Appliance And Electronic Equipment.
(2)Ultrasonic Distance Measuring.Vehicle Backing And Collision Equipment,Ulruasonic Approaching Swich.
(3)Ultrasonic Transmitting And Receiving For Burdar Detection Disaster Denitection. |
- Main Features
(1)High Sensitivity High Reliablity And Stablilty
(2)High And Low Temp.-Resistance Humidity-Resistance, Vibration-Resistance,Shock-Resistance
|
|
| | |
| NORMAL TEMPERATURE CHARACTERISTICS |
|
Part Number |
Frequency(KHz) |
Sensitiivity
(odB=v/Pa)(min)
|
S.P.L(at.10V.30cm)
(OdB=0.02mPa)(min) |
Capacitance
(±30%PF) |
Rest Resonant
Time(ms)max |
|
TCF40-10TR1 |
40 |
-67 |
95 |
2000 |
0.5 |
|
TCF40-12TR1 |
40 |
-67 |
100 |
2000 |
0.5 |
| TCF40-14TR1 |
40 |
-67 |
100 |
2000 |
0.5 |
| TCF40-16TR1 |
40 |
-65 |
100 |
2000 |
0.5 |
| TCF40-18TR1 |
40 |
-65 |
100 |
2000 |
0.5 | | |
| |
| |
|
| |
| TCT40-10T/R1 |
TCT40-10T/R2 |
TCT40-12T/R1 |
TCT40-16T/R1 |
TCT25-16T/R1 |
- Appications
(1)Rmote Controller For Home Electric Appliance And Electronic Equipment.
(2)Ultrasonic Distance Measuring.Vehicle Backing And Collision Equipment,Ulruasonic Approaching Swich.
(3)Ultrasonic Transmitting And Receiving For Burdar Detection Disaster Denitection. |
- Appications
(1)Rmote Controller For Home Electric Appliance And Electronic Equipment.
(2)Ultrasonic Distance Measuring.Vehicle Backing And Collision Equipment,Ulruasonic Approaching Swich.
(3)Ultrasonic Transmitting And Receiving For Burdar Detection Disaster Denitection.
|
| ONTLINE DIMENSION |
|
Part Number |
D(mm) |
d(mm) |
H(mm) |
h(mm) |
f(mm) |
Cas Material |
|
TCT40-10T/R1 |
9.9 |
0.7 |
7 |
7.6 |
5.0 |
ABS |
|
TCT40-10T/R2 |
9.9 |
0.7 |
7 |
7.6 |
5.0 |
Aluminium |
| TCT40-12T/R1 |
12.6 |
0.7 |
9.5 |
7.2 |
8.5 |
Aluminium |
| TCT40-16T/R1 |
16.2 |
1.0 |
12 |
12.6 |
10.0 |
Aluminium |
| TCT25-16T/R1 |
16.2 |
1.0 |
12 |
12.6 |
10.0 |
Aluminium | | |
NORMAL TEMPERATURE CHARACTERISTICS
| Part Number |
Frequency(KHZ) |
Sensitivity
(odB=10/Pa)
(min) |
S.P.L
(at.10v.30cm)
(min) |
Capacitance
(±30%PF). |
| TCT40-10T1 |
40 |
|
110dB |
1700 |
| TCT10-10R1 |
-70dB |
|
| TCT40-10T2 |
|
110dB |
1700 |
| TCT40-10R2 |
-70dB |
|
| TCT40-12T1 |
|
112dB |
2000 |
| TCT40-12R1 |
-70dB |
|
| TCT40-16T1 |
|
120dB |
2000 |
| TCT40-16R1 |
-63dB |
|
| TCT25-16T1 |
|
117dB |
2000 |
| TCT25-16R1 |
-66dB |
| | |
|
|
| |
|
